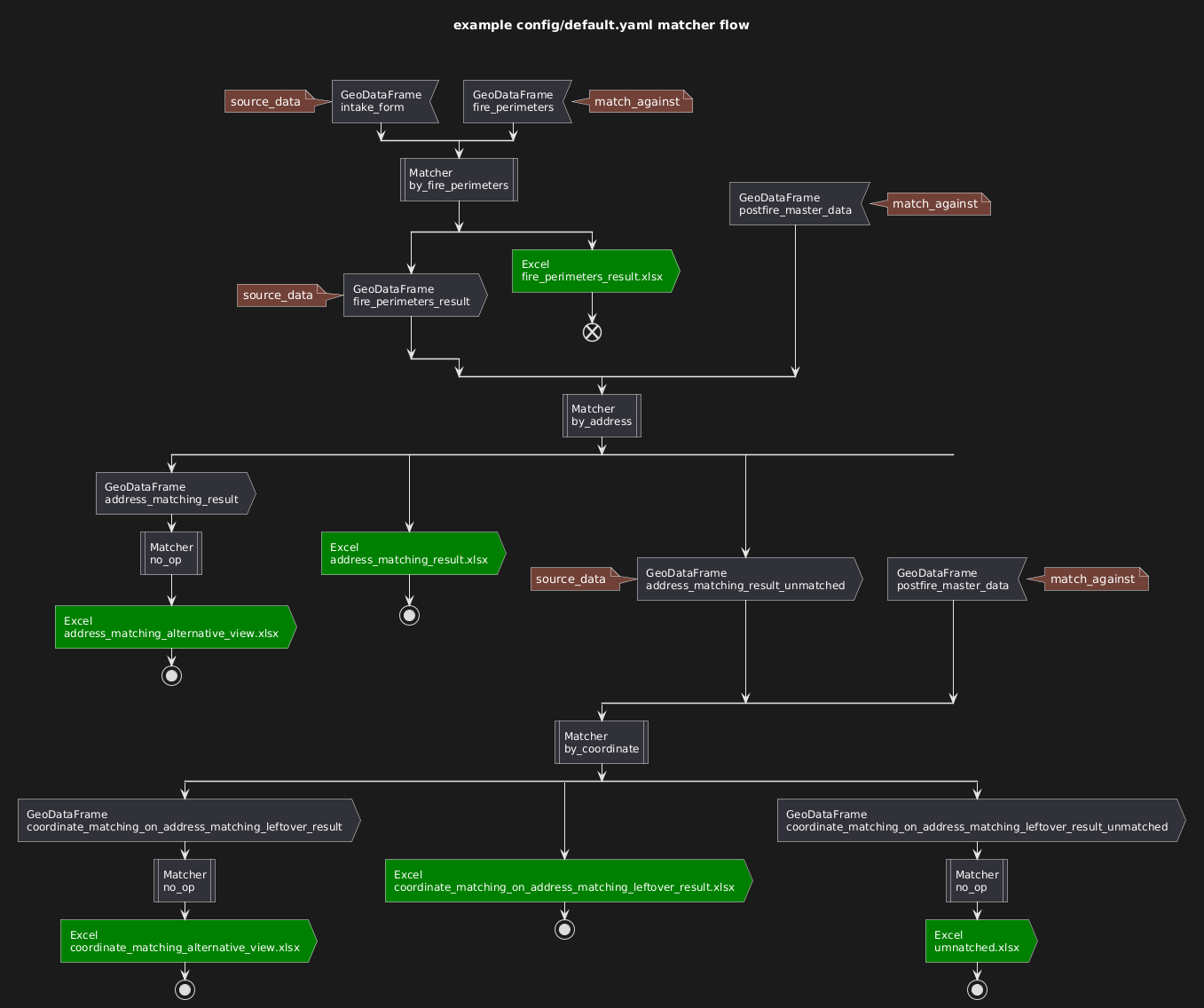

@startuml title example config/default.yaml matcher flow split -[hidden]-> split -[hidden]-> :GeoDataFrame\nintake_form; <<input>> note left source_data end note split again -[hidden]-> :GeoDataFrame\nfire_perimeters; <<input>> note right match_against end note end split :Matcher\nby_fire_perimeters; <<procedure>> split :GeoDataFrame\nfire_perimeters_result; <<output>> note left source_data end note split again #green:Excel\nfire_perimeters_result.xlsx; <<output>> end end split split again -[hidden]-> :GeoDataFrame\npostfire_master_data; <<input>> note right match_against end note end split :Matcher\nby_address; <<procedure>> split :GeoDataFrame\naddress_matching_result; <<output>> :Matcher\nno_op; <<procedure>> #green:Excel\naddress_matching_alternative_view.xlsx; <<output>> stop split again #green:Excel\naddress_matching_result.xlsx; <<output>> stop split again :GeoDataFrame\naddress_matching_result_unmatched; <<output>> note left source_data end note split again -[hidden]-> :GeoDataFrame\npostfire_master_data; <<input>> note right match_against end note end split :Matcher\nby_coordinate; <<procedure>> split :GeoDataFrame\ncoordinate_matching_on_address_matching_leftover_result; <<output>> :Matcher\nno_op; <<procedure>> #green:Excel\ncoordinate_matching_alternative_view.xlsx; <<output>> stop split again #green:Excel\ncoordinate_matching_on_address_matching_leftover_result.xlsx; <<output>> stop split again :GeoDataFrame\ncoordinate_matching_on_address_matching_leftover_result_unmatched; <<output>> :Matcher\nno_op; <<procedure>> #green:Excel\numnatched.xlsx; <<output>> stop @enduml Submit amiga aws-orange black-knight bluegray blueprint cerulean-outline cerulean crt-amber crt-green cyborg-outline cyborg hacker lightgray mars materia-outline materia metal mimeograph minty plain reddress-darkblue reddress-darkgreen reddress-darkorange reddress-darkred reddress-lightblue reddress-lightgreen reddress-lightorange reddress-lightred sandstone silver sketchy-outline sketchy spacelab spacelab-white superhero-outline superhero toy united vibrant       🎉 Discover the future PlantUML Web Editor! 🚀  PNG  SVG  ASCII Art
