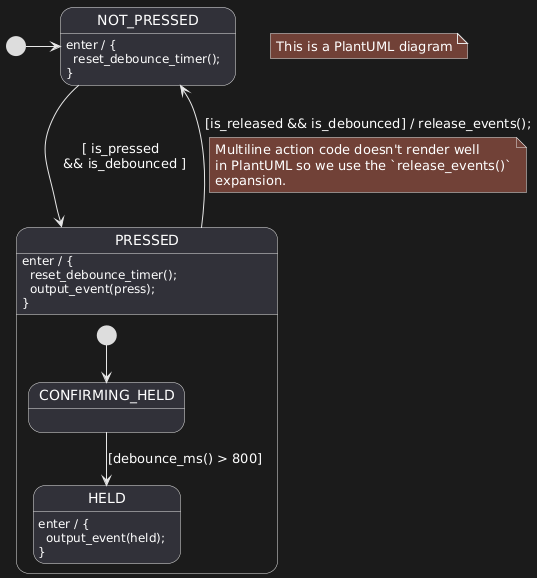

@startuml [*] -> NOT_PRESSED state NOT_PRESSED { NOT_PRESSED : enter / {\n reset_debounce_timer();\n} } note "This is a PlantUML diagram" as N1 state PRESSED { PRESSED : enter / {\n reset_debounce_timer();\n output_event(press);\n} HELD : enter / {\n output_event(held);\n} [*] -down-> CONFIRMING_HELD CONFIRMING_HELD -down-> HELD : [debounce_ms() > 800] } /' Note: I couldn't get the below transition to match the yEd diagram. PlantUML center aligns the below label and makes it hard to read. Does anyone know how to left align it? PRESSED --> NOT_PRESSED : [is_released && is_debounced] / {\n if (debounce_ms() <= 200) {\n output_event(tap);\n }\n output_event(release);\n} '/ PRESSED --> NOT_PRESSED : [is_released && is_debounced] / release_events(); note on link : Multiline action code doesn't render well\nin PlantUML so we use the `release_events()`\nexpansion. NOT_PRESSED --> PRESSED : [ is_pressed\n && is_debounced ] @enduml
