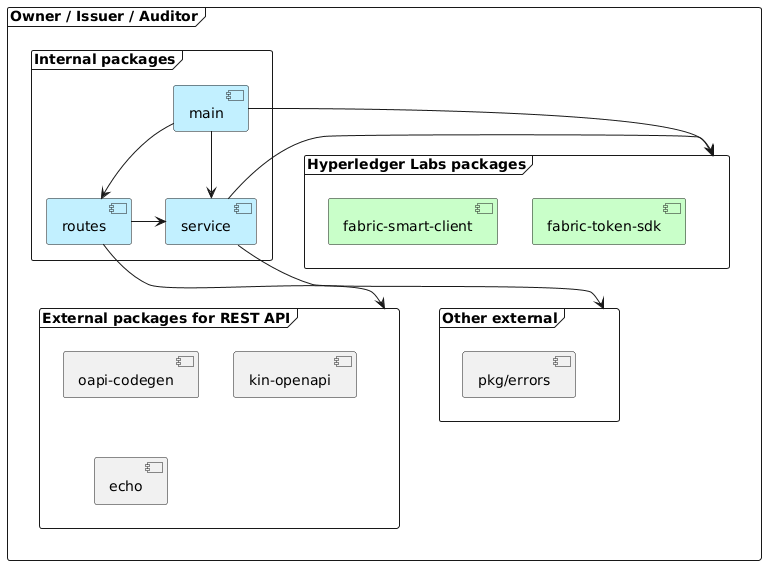

@startuml frame "Owner / Issuer / Auditor" { frame "Internal packages" as ip { [main] as main #Application [routes] as routes #Application [service] as svc #Application } main -d-> svc main -d-> routes routes -> svc frame "Hyperledger Labs packages" as ept { [fabric-smart-client] as fsc #Technology [fabric-token-sdk] as sdk #Technology } main -d-> ept svc -> ept frame "Other external" as epo { [pkg/errors] } svc -d-> epo frame "External packages for REST API" as epa { [oapi-codegen] [kin-openapi] [echo] } routes -d-> epa } @enduml
