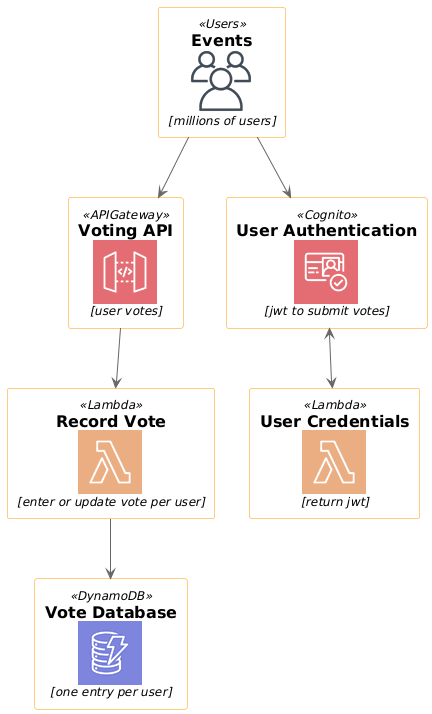

@startuml !define AWSPuml https://raw.githubusercontent.com/awslabs/aws-icons-for-plantuml/master/dist !include AWSPuml/AWSCommon.puml !include AWSPuml/General/Users.puml !include AWSPuml/Mobile/APIGateway.puml !include AWSPuml/SecurityIdentityAndCompliance/Cognito.puml !include AWSPuml/Compute/Lambda.puml !include AWSPuml/Database/DynamoDB.puml Users(sources, "Events", "millions of users") APIGateway(votingAPI, "Voting API", "user votes") Cognito(userAuth, "User Authentication", "jwt to submit votes") Lambda(generateToken, "User Credentials", "return jwt") Lambda(recordVote, "Record Vote", "enter or update vote per user") DynamoDB(voteDb, "Vote Database", "one entry per user") sources --> userAuth sources --> votingAPI userAuth <--> generateToken votingAPI --> recordVote recordVote --> voteDb @enduml
