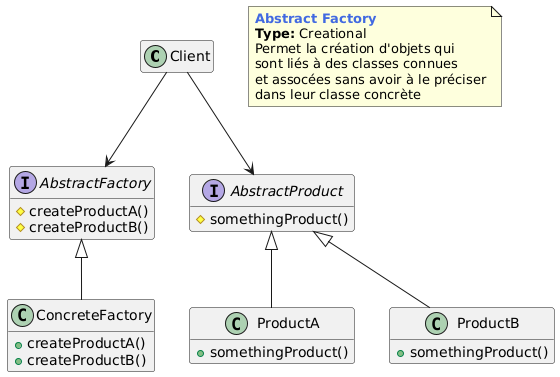

@startuml /' ABSTRACT FACTORY '/ class Client interface AbstractFactory { # createProductA() # createProductB() } class ConcreteFactory { + createProductA() + createProductB() } interface AbstractProduct { # somethingProduct() } class ProductA { + somethingProduct() } class ProductB { + somethingProduct() } hide empty members AbstractFactory <|-- ConcreteFactory AbstractProduct <|-- ProductA AbstractProduct <|-- ProductB Client --> AbstractFactory Client --> AbstractProduct note as N1 <b><color:royalBlue>Abstract Factory</color></b> <b>Type:</b> Creational Permet la création d'objets qui sont liés à des classes connues et assocées sans avoir à le préciser dans leur classe concrète end note @enduml Submit amiga aws-orange black-knight bluegray blueprint cerulean-outline cerulean crt-amber crt-green cyborg-outline cyborg hacker lightgray mars materia-outline materia metal mimeograph minty plain reddress-darkblue reddress-darkgreen reddress-darkorange reddress-darkred reddress-lightblue reddress-lightgreen reddress-lightorange reddress-lightred sandstone silver sketchy-outline sketchy spacelab spacelab-white superhero-outline superhero toy united vibrant       🎉 Discover the future PlantUML Web Editor! 🚀  PNG  SVG  ASCII Art
