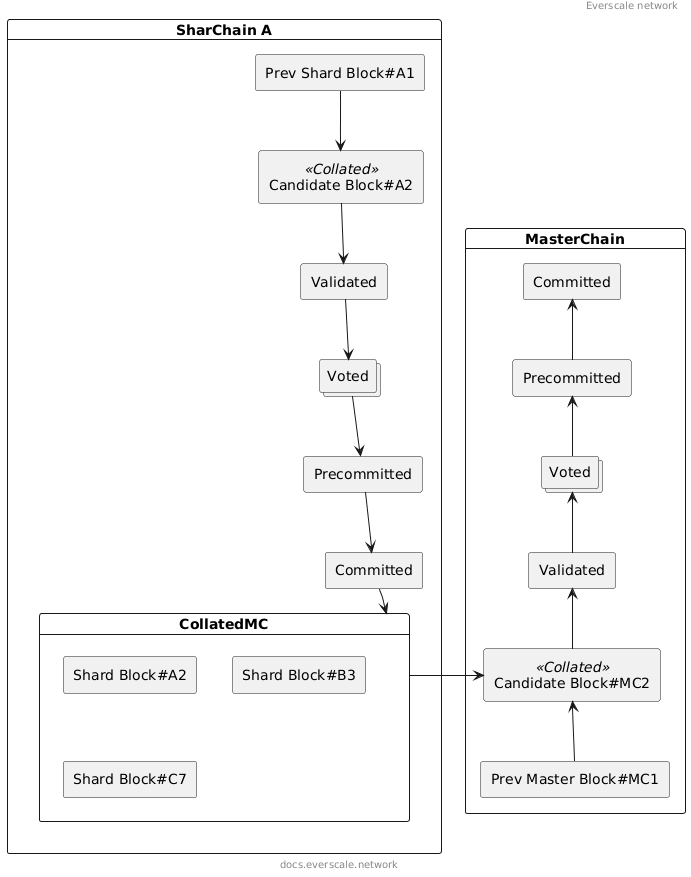

@startuml
skinparam componentStyle rectangle

header Everscale network
footer docs.everscale.network

card "SharChain A" {
    component "Prev Shard Block#A1" as Prev
    component "Candidate Block#A2" <<Collated>> as Candidate
    component Validated
    collections Voted
    component Precommitted
    component Committed

Prev --> Candidate
    Candidate --> Validated
    Validated --> Voted
    Voted --> Precommitted
    Precommitted --> Committed
    Committed --> CollatedMC
}

card "Collated MC" as CollatedMC {
    component "Shard Block#A2" as A2
    component "Shard Block#B3" as B3
    component "Shard Block#C7" as C7
}

card "MasterChain" {
    component "Prev Master Block#MC1" as PrevMC
    component "Candidate Block#MC2" <<Collated>> as CandidateMC
    CollatedMC -r-> CandidateMC
    component Validated as ValidatedMC
    collections Voted as VotedMC
    component Precommitted as PrecommittedMC
    component Committed as CommittedMC

PrevMC -u-> CandidateMC
    CandidateMC -u-> ValidatedMC
    ValidatedMC -u-> VotedMC
    VotedMC -u-> PrecommittedMC
    PrecommittedMC -u-> CommittedMC
}
@enduml
