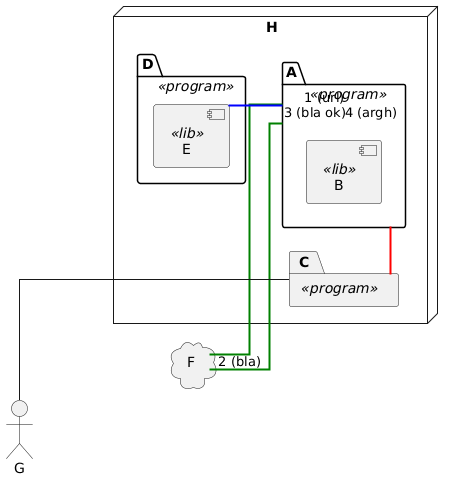

@startuml left to right direction skinparam linetype ortho 'skinparam nodesep 120 actor G node H { package A <<program>> { component B <<lib>> } package C <<program>> package D <<program>> { component E <<lib>> } } cloud F A -[bold,#green]- "2 (bla)" F F -[bold,#green]- "3 (bla ok)" A G ---- C A "4 (argh)" -[bold,#red] C E -[bold,#blue]d- "1 (url)" A @enduml
