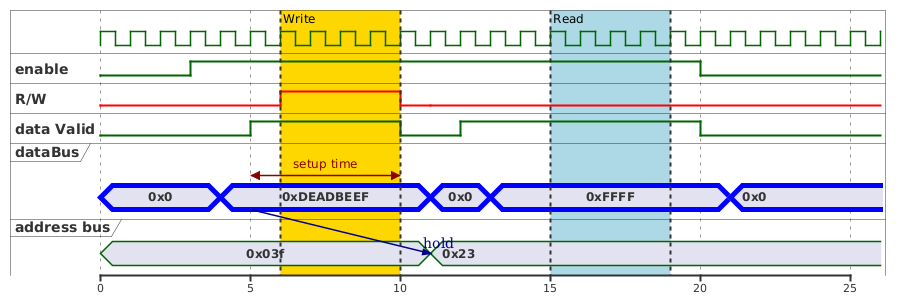

@startuml <style> timingDiagram { .red { LineColor red } .blue { LineColor blue LineThickness 5 } } </style> scale 5 as 150 pixels clock clk with period 1 binary "enable" as en binary "R/W" as rw <<red>> binary "data Valid" as dv concise "dataBus" as db <<blue>> concise "address bus" as addr @6 as :write_beg @10 as :write_end @+5 as :read_beg @19 as :read_end @0 en is low db is "0x0" addr is "0x03f" rw is low dv is 0 @:write_beg-3 en is high @:write_beg-2 db is "0xDEADBEEF" @:write_beg-1 dv is 1 @:write_beg rw is high @:write_end rw is low dv is low @:write_end+1 rw is low db is "0x0" addr is "0x23" @12 dv is high @13 db is "0xFFFF" @20 en is low dv is low @21 db is "0x0" highlight :write_beg to :write_end #Gold:Write highlight :read_beg to :read_end #lightBlue:Read db@:write_beg-1 <-> @:write_end : setup time db@:write_beg-1 -> addr@:write_end+1 : hold @enduml Submit amiga aws-orange black-knight bluegray blueprint cerulean-outline cerulean crt-amber crt-green cyborg-outline cyborg hacker lightgray mars materia-outline materia metal mimeograph minty plain reddress-darkblue reddress-darkgreen reddress-darkorange reddress-darkred reddress-lightblue reddress-lightgreen reddress-lightorange reddress-lightred sandstone silver sketchy-outline sketchy spacelab spacelab-white superhero-outline superhero toy united vibrant       🎉 Discover the future PlantUML Web Editor! 🚀  PNG  SVG  ASCII Art
