@startuml
<style>
nwdiagDiagram {
  network {
    BackGroundColor Orange
  }
  server {
    BackGroundColor LemonChiffon
    LineColor black
    FontStyle bold
    Shadowing 1
  }
  arrow {
    FontSize 12
    FontColor Red
    FontStyle bold
    LineColor Chocolate
  }
}
</style>

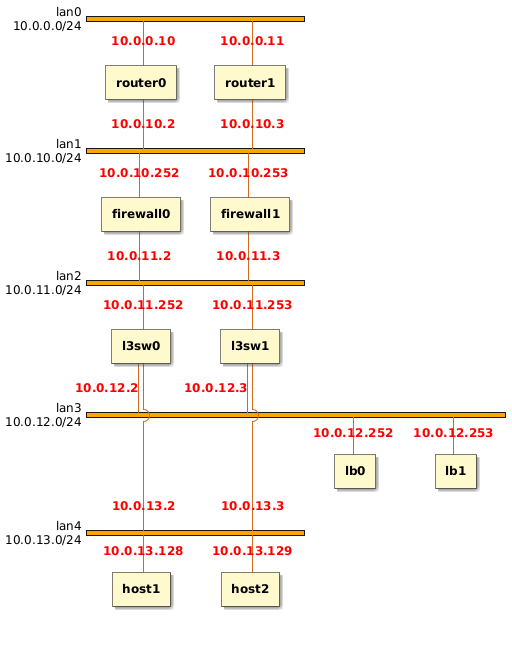

nwdiag {
  network lan0{
    address = "10.0.0.0/24";
    router0 [address = "10.0.0.10"];
    router1 [address = "10.0.0.11"];
  }
  network lan1{
    address = "10.0.10.0/24";
    router0 [address = "10.0.10.2"];
    router1 [address = "10.0.10.3"];
    firewall0 [address = "10.0.10.252"];
    firewall1 [address = "10.0.10.253"];
  }
  network lan2{
    address = "10.0.11.0/24";
    firewall0 [address = "10.0.11.2"];
    firewall1 [address = "10.0.11.3"];
    l3sw0 [address = "10.0.11.252"];
    l3sw1 [address = "10.0.11.253"];
  }
  network lan3{
    address = "10.0.12.0/24";
    lb0 [address = "10.0.12.252"];
    lb1 [address = "10.0.12.253"];
    l3sw0 [address = "10.0.12.2"];
    l3sw1 [address = "10.0.12.3"];
  }
  network lan4{
    address = "10.0.13.0/24";
    l3sw0 [address = "10.0.13.2"];
    l3sw1 [address = "10.0.13.3"];
    host1 [address = "10.0.13.128"];
    host2 [address = "10.0.13.129"];
  }
}
@enduml
