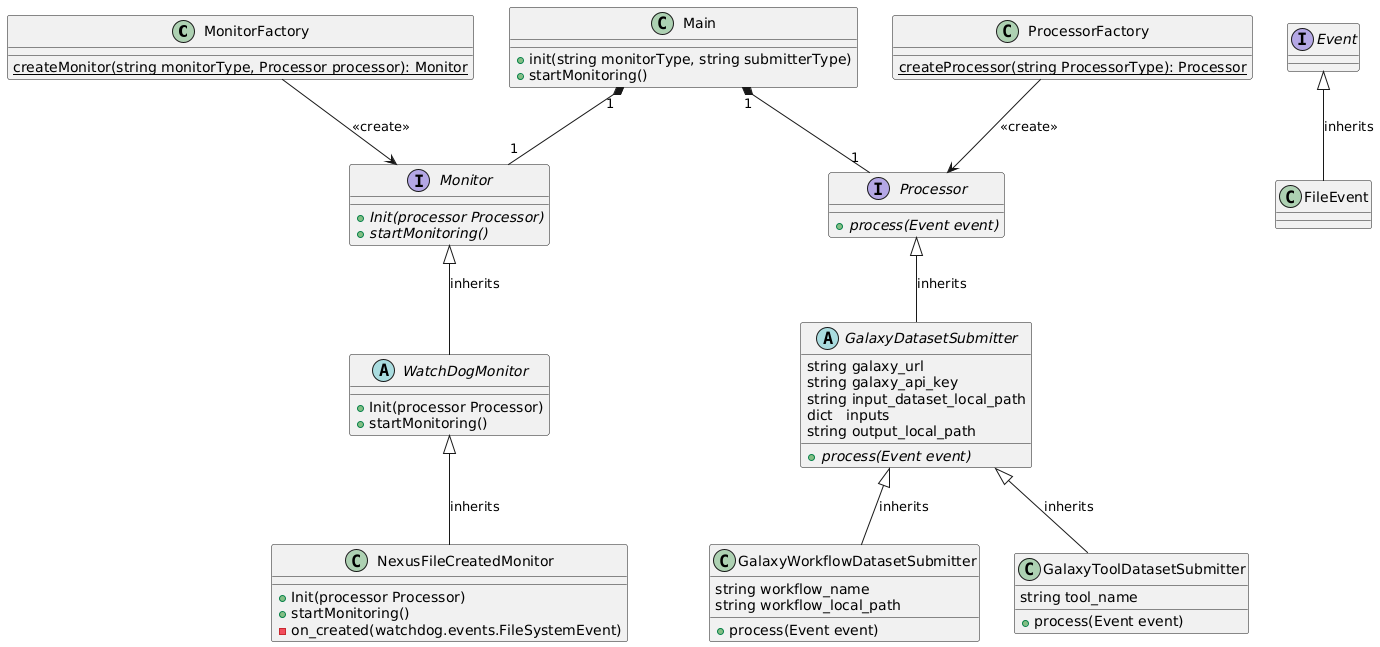

@startuml
class MonitorFactory {
 {static} createMonitor(string monitorType, Processor processor): Monitor
}

class ProcessorFactory {
  {static} createProcessor(string ProcessorType): Processor
}

interface Monitor {
 + {abstract} Init(processor Processor)
 + {abstract} startMonitoring()
}

abstract class WatchDogMonitor {
 + Init(processor Processor)
 + startMonitoring()
}

Monitor <|-- WatchDogMonitor: inherits
WatchDogMonitor <|-- NexusFileCreatedMonitor: inherits
MonitorFactory --> Monitor: <<create>>
ProcessorFactory --> Processor: <<create>>

interface Processor {
 + {abstract} process(Event event)
}

class Main {
  + init(string monitorType, string submitterType)
  + startMonitoring()
}

class NexusFileCreatedMonitor {
 + Init(processor Processor)
 + startMonitoring()
 - on_created(watchdog.events.FileSystemEvent)
}

interface Event {
}

class FileEvent {
}
Event <|-- FileEvent: inherits

abstract class GalaxyDatasetSubmitter {
  string galaxy_url
  string galaxy_api_key
  string input_dataset_local_path
  dict   inputs
  string output_local_path

+ {abstract} process(Event event)
}

class GalaxyWorkflowDatasetSubmitter {
  string workflow_name
  string workflow_local_path

+ process(Event event)
}

class GalaxyToolDatasetSubmitter {
  string tool_name

+ process(Event event)
}

Processor <|-- GalaxyDatasetSubmitter: inherits
GalaxyDatasetSubmitter <|-- GalaxyWorkflowDatasetSubmitter: inherits
GalaxyDatasetSubmitter <|-- GalaxyToolDatasetSubmitter: inherits

Main  "1" *-- "1" Monitor
Main  "1" *-- "1" Processor
@enduml
