@startuml
skinparam defaultFontName Helvetica

skinparam noteBackgroundColor White
skinparam legendBackgroundColor White
skinparam noteBorderColor Gray

top to bottom direction

skinparam linetype ortho

skinparam arrowThickness 2

skinparam interface {
		backgroundColor White
		borderColor Black
	}

skinparam queue {
		backgroundColor White
		borderColor Black
	}

skinparam boundary {
		backgroundColor White
		borderColor Black
	}

skinparam control {
		backgroundColor White
		borderColor Black
	}

skinparam entity {
		backgroundColor White
		borderColor Black
	}

skinparam actor {
		borderColor Black
	}

skinparam cloud {
		borderColor Gray
	}

skinparam arrow {
		color gray
	}

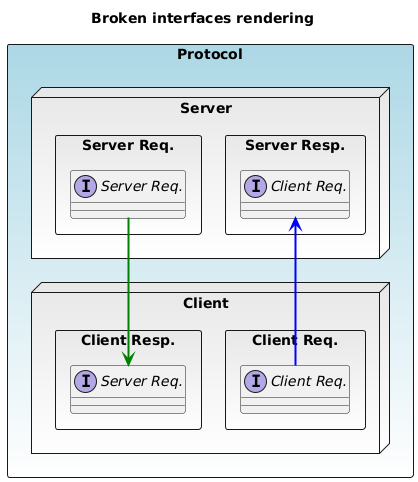

title Broken interfaces rendering

rectangle "Protocol" as protocol #LightBlue-White {

node "Server" as server_component #E8E8E8-White {

rectangle "Server Req." as serverRequest #E8E8E8-White {
				 interface "Server Req." as serverRequest_at_SERVER_REQUESTS
			}

rectangle "Server Resp." as serverResponse #E8E8E8-White {
				 interface "Client Req." as serverResponse_at_DATA_SYNC
			}
		}

node "Client" as client_component #E8E8E8-White {

rectangle "Client Resp." as clientResponse #E8E8E8-White {
				 interface "Server Req." as clientResponse_at_SERVER_REQUESTS
			}

rectangle "Client Req." as clientRequest #E8E8E8-White {
				 interface "Client Req." as clientRequest_at_DATA_SYNC
			}
		}
	}

serverRequest_at_SERVER_REQUESTS -[#green]-> clientResponse_at_SERVER_REQUESTS
	serverResponse_at_DATA_SYNC <-[#blue]- clientRequest_at_DATA_SYNC
@enduml
