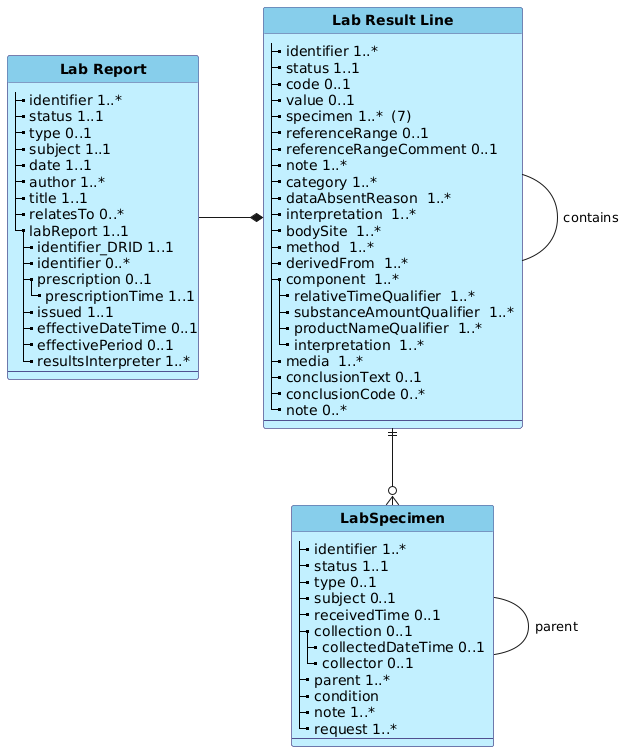

@startuml
'skinparam linetype ortho
skinparam linetype polyline
hide circle
hide stereotype

'!pragma layout smetana

skinparam class<<MD>> {
 BorderColor DarkSlateGray
 BackgroundColor WhiteSmoke
 HeaderBackgroundColor #909090
}

skinparam class<<TM>> {
 BorderColor #505090
 BackgroundColor APPLICATION
 HeaderBackgroundColor SkyBlue
}

class "**LabSpecimen**" as LS<<TM>> {
        |_ identifier 1..*
        |_ status 1..1
        |_ type 0..1
        |_ subject 0..1
        |_ receivedTime 0..1
        |_ collection 0..1
          |_ collectedDateTime 0..1
          |_ collector 0..1
        |_ parent 1..*
        |_ condition
        |_ note 1..*
        |_ request 1..*
        --
    }

class "**Lab Report**" as LR<<TM>> {
        |_ identifier 1..*
        |_ status 1..1
        |_ type 0..1
        |_ subject 1..1
        |_ date 1..1
        |_ author 1..*
        |_ title 1..1
        |_ relatesTo 0..*
        |_ labReport 1..1
          |_ identifier_DRID 1..1
          |_ identifier 0..*
          |_ prescription 0..1
            |_ prescriptionTime 1..1
          |_ issued 1..1
          |_ effectiveDateTime 0..1
          |_ effectivePeriod 0..1
          |_ resultsInterpreter 1..*
        --
    }

class "**Lab Result Line**" as LRL<<TM>> {
            |_ identifier 1..*
            |_ status 1..1
            |_ code 0..1
            |_ value 0..1
            |_ specimen 1..*  (7)
            |_ referenceRange 0..1
            |_ referenceRangeComment 0..1
            |_ note 1..*
            |_ category 1..*
            |_ dataAbsentReason  1..*
            |_ interpretation  1..*
            |_ bodySite  1..*
            |_ method  1..*
            |_ derivedFrom  1..*
            |_ component  1..*
              |_ relativeTimeQualifier  1..*
              |_ substanceAmountQualifier  1..*
              |_ productNameQualifier  1..*
              |_ interpretation  1..*
          |_ media  1..*
          |_ conclusionText 0..1
          |_ conclusionCode 0..*
          |_ note 0..*
          --
    }

LR -r-* LRL :"       "
LRL -d[hidden]- LS
LRL -d- LRL: "contains"
LS -d- LS: "parent"
LRL ||-d-o{ LS :"                  "
@enduml
