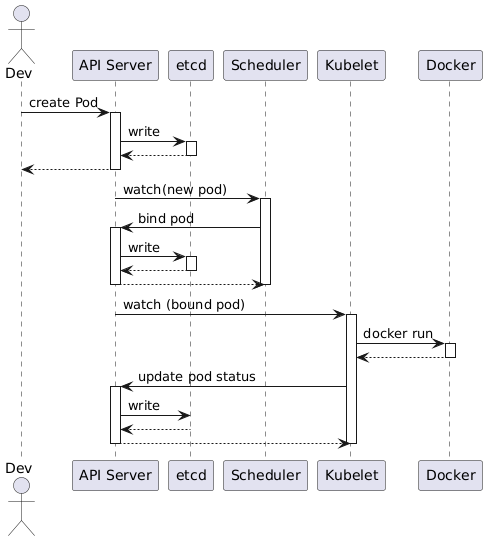

@startuml actor Dev participant "API Server" as api participant etcd participant Scheduler as sched participant Kubelet as kubelet participant Docker as docker Dev -> api : create Pod activate api api -> etcd : write activate etcd etcd --> api deactivate etcd api --> Dev deactivate api api -> sched : watch(new pod) activate sched sched -> api : bind pod activate api api -> etcd : write activate etcd etcd --> api deactivate etcd api --> sched deactivate api deactivate sched api -> kubelet : watch (bound pod) activate kubelet kubelet -> docker : docker run activate docker docker --> kubelet deactivate docker kubelet -> api : update pod status activate api api -> etcd : write etcd --> api deactivate etcd api --> kubelet deactivate api deactivate kubelet activate etcd @enduml Submit amiga aws-orange black-knight bluegray blueprint cerulean-outline cerulean crt-amber crt-green cyborg-outline cyborg hacker lightgray mars materia-outline materia metal mimeograph minty plain reddress-darkblue reddress-darkgreen reddress-darkorange reddress-darkred reddress-lightblue reddress-lightgreen reddress-lightorange reddress-lightred sandstone silver sketchy-outline sketchy spacelab spacelab-white superhero-outline superhero toy united vibrant       Pure Javascript  PNG  SVG  ASCII Art
