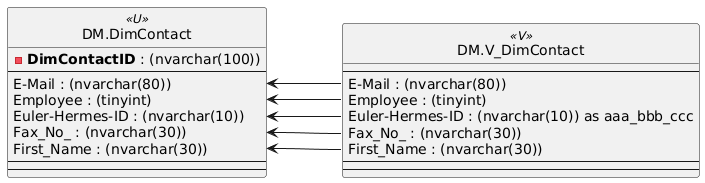

@startuml left to right direction 'top to bottom direction hide circle 'avoide "." issues: set namespaceSeparator none entity DM.DimContact << U >> { - **DimContactID** : (nvarchar(100)) -- E-Mail : (nvarchar(80)) Employee : (tinyint) Euler-Hermes-ID : (nvarchar(10)) Fax_No_ : (nvarchar(30)) First_Name : (nvarchar(30)) -- -- } entity DM.V_DimContact << V >> { -- E-Mail : (nvarchar(80)) Employee : (tinyint) Euler-Hermes-ID : (nvarchar(10)) as aaa_bbb_ccc Fax_No_ : (nvarchar(30)) First_Name : (nvarchar(30)) -- -- } "DM.DimContact::E-Mail" <-- "DM.V_DimContact::E-Mail" DM.DimContact::Employee <-- DM.V_DimContact::Employee "DM.DimContact::Euler-Hermes-ID" <-- "DM.V_DimContact::Euler-Hermes-ID" DM.DimContact::Fax_No_ <-- DM.V_DimContact::Fax_No_ DM.DimContact::First_Name <-- DM.V_DimContact::First_Name @enduml Submit amiga aws-orange black-knight bluegray blueprint cerulean-outline cerulean crt-amber crt-green cyborg-outline cyborg hacker lightgray mars materia-outline materia metal mimeograph minty plain reddress-darkblue reddress-darkgreen reddress-darkorange reddress-darkred reddress-lightblue reddress-lightgreen reddress-lightorange reddress-lightred sandstone silver sketchy-outline sketchy spacelab spacelab-white superhero-outline superhero toy united vibrant       🎉 Discover the future PlantUML Web Editor! 🚀  PNG  SVG  ASCII Art
