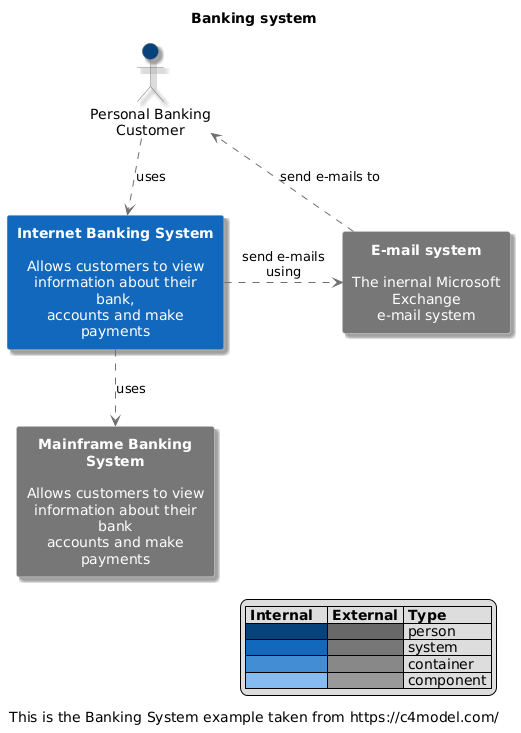

@startuml !includeurl https://raw.githubusercontent.com/skleanthous/C4-PlantumlSkin/master/build/output/c4.puml title Banking system caption This is the Banking System example taken from https://c4model.com/ rectangle email_system <<External System>> [ **E-mail system** The inernal Microsoft Exchange e-mail system ] together { actor "Personal Banking \nCustomer" <<Internal Person>> as customer rectangle internet_banking <<Internal System>> [ **Internet Banking System** Allows customers to view information about their bank, accounts and make payments ] rectangle mainframe_banking <<External System>> [ **Mainframe Banking System** Allows customers to view information about their bank accounts and make payments ] } customer .down.> internet_banking : uses internet_banking .down.> mainframe_banking : uses internet_banking .right.> email_system : send e-mails\nusing email_system ..> customer : send e-mails to @enduml
