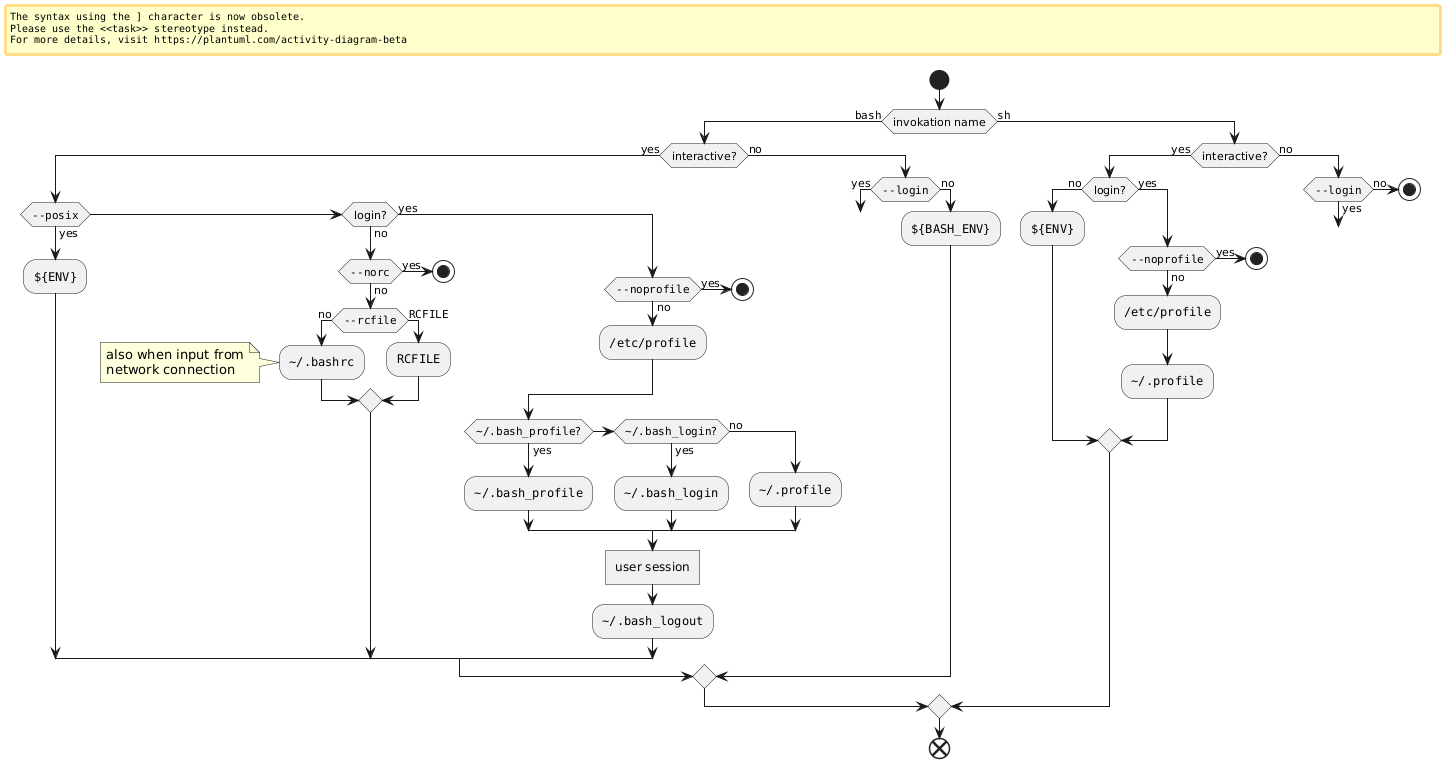

@startuml
start

if (invokation name) then (""bash"")
  if (interactive?) then (yes)
    if(""--posix"") then (yes)
      :""${ENV}"";
    else if(login?) then (no)
         if(""--norc"") then (yes)
           stop
         else (no)
           if(""--rcfile"") then (no)
             :""\~/.bashrc"";
             note: also when input from\nnetwork connection
           else (""RCFILE"")
             :""RCFILE"";
           endif
         endif
    else (yes)
         label bash_login
         if(""--noprofile"") then (yes)
           stop
         else (no)
           :""/etc/profile"";
           if (""\~/.bash_profile""?) then (yes)
             :""\~/.bash_profile"";
           else if (""\~/.bash_login""?) then (yes)
             :""\~/.bash_login"";
           else (no)
             :""\~/.profile"";
           endif
         endif
        :user session]
        :""\~/.bash_logout"";
    endif
  else (no)
    if(""--login"") then (yes)
      goto bash_login
    else (no)
      :""${BASH_ENV}"";
    endif
  endif

else (""sh"")
  if (interactive?) then (yes)
    if(login?) then (no)
      :""${ENV}"";
    else (yes)
         label sh_login
         if(""--noprofile"") then (yes)
           stop
         else (no)
           :""/etc/profile"";
           :""\~/.profile"";
         endif
    endif
  else (no)
    if(""--login"") then (yes)
      goto sh_login
    else (no)
      stop
    endif
  endif

endif

end
@enduml
