PlantUML Web Server

@startuml
!include <logos/nginx>
!include <osa/user/blue/blue>

hide stereotype

skinparam rectangle {
    BorderColor transparent
    BackgroundColor transparent
}

skinparam rectangle<<server>> {
    BackgroundColor lightblue
}

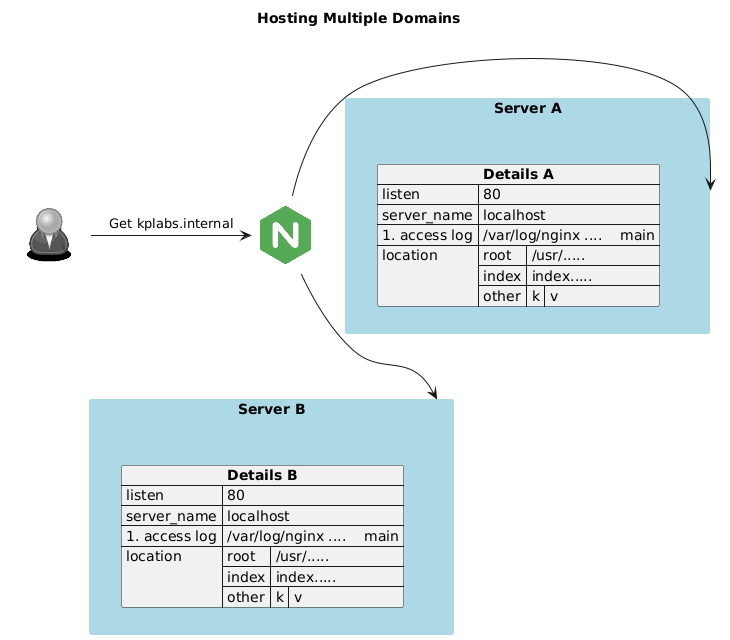

title "Hosting Multiple Domains"

rectangle "<$blue,scale=0.5>" as P

rectangle "<$nginx,color=green>" as N

rectangle "Server A" <<server>> as A {
  json "<b>Details A" as A_Details {
    "listen": 80,
    "server_name": "localhost",
    "#access log": "/var/log/nginx ....    main",
    "location": {
      "root": "/usr/.....",
      "index": "index.....",
      "other": {"k": "v"}
    }
  }
}

rectangle "Server B" <<server>> as B {
  json "<b>Details B" as B_Details {
    "listen": 80,
    "server_name": "localhost",
    "#access log": "/var/log/nginx ....    main",
    "location": {
      "root": "/usr/.....",
      "index": "index.....",
      "other": {"k": "v"}
    }
  }
}

P -right-> N : "Get kplabs.internal"
N -right-> A : ""
N -right-> B : ""

A -[hidden]down-> B
@enduml
