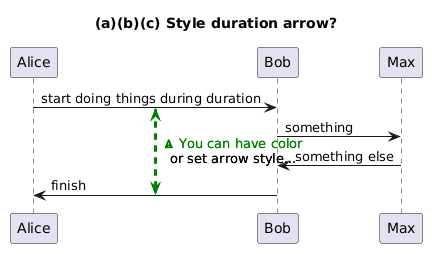

@startuml !pragma teoz true title (a)(b)(c) Style duration arrow? {start} Alice -> Bob : start doing things during duration Bob -> Max : something Max -> Bob : something else {end} Bob -> Alice : finish <style> arrow { LineColor green /' (a) color tagging the arrow '/ LineThickness 3 /' (b) thickness of just the duration arrow '/ LineStyle 6;3 /' (c) use other linetypes '/ } </style> {start} <-> {end} : <color:#green> <&warning> You can have color \nor set arrow style... @enduml
