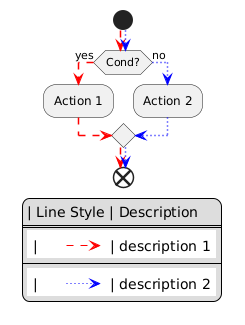

@startuml skinparam colorArrowSeparationSpace 3 !$style1 = "#red,dashed" !$style2 = "#blue,dotted" start -[$style1;$style2]-> if(Cond?)then(yes) -[$style1]-> :Action 1; -[$style1]-> else(no) -[$style2]-> :Action 2; -[$style2]-> endif -[$style1;$style2]-> end !procedure $code($styles, $descr) {{ label "| " as a label "$descr" as b a -[$styles]> b }} !endprocedure legend | Line Style | Description ==== $code($style1, "| description 1") ---- $code($style2, "| description 2") endlegend @enduml
