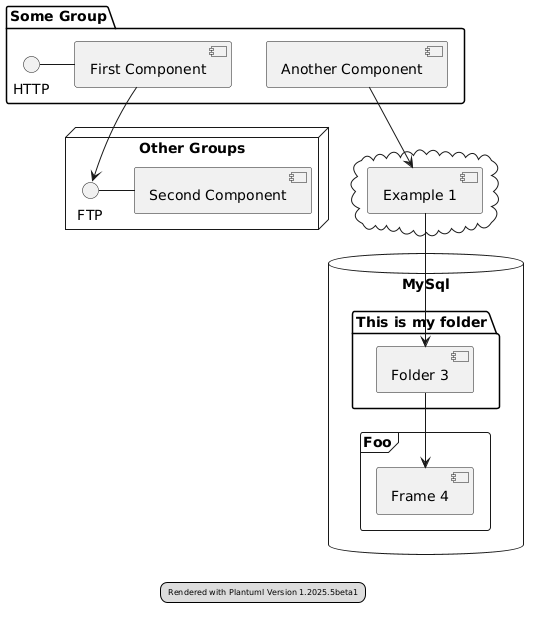

@startuml package "Some Group" { HTTP - [First Component] [Another Component] } node "Other Groups" { FTP - [Second Component] [First Component] --> FTP } cloud { [Example 1] } database "MySql" { folder "This is my folder" { [Folder 3] } frame "Foo" { [Frame 4] } } [Another Component] --> [Example 1] [Example 1] --> [Folder 3] [Folder 3] --> [Frame 4] legend <size:8> Rendered with Plantuml Version %version() </size> end legend @enduml
