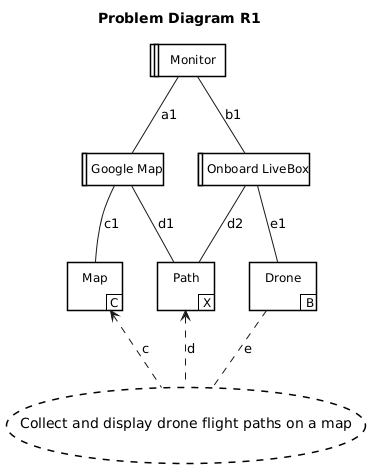

@startuml title Problem Diagram R1 skinparam BiddableBackgroundColor LightBlue skinparam BiddableBorderColor red requirement "Collect and display drone flight paths on a map" as R1 domain "Google Map" as D1 <<Designed>> domain "Onboard LiveBox" as D2 <<Designed>> domain "Drone" as D3 <<Biddable>> domain "Path" as D4 <<Lexical>> domain "Map" as D5 <<Causal>> domain "Monitor" as M <<Machine>> M -- D1: a1 M -- D2: b1 D1 -- D4: d1 D4 <-[dashed]- R1: d D2 -- D3: e1 D3 -[dashed]- R1: e D2 -- D4: d2 D5 <-[dashed]- R1: c D1 -- D5: c1 @enduml
