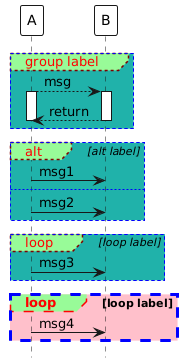

@startuml hide footbox <style> sequenceDiagram { participant { BackGroundColor white LineThickness 1 } group { FontStyle italic LineThickness 1 LineColor blue LineStyle 3 BackGroundColor LightSeaGreen } groupHeader { FontStyle plain FontColor red BackGroundColor palegreen LineColor maroon LineStyle 3 } } </style> participant A participant B group group label A-->B : msg activate A activate B A<--B : return deactivate A deactivate B end group alt alt label A -> B : msg1 else A -> B : msg2 end alt loop loop label A -> B : msg3 end loop <style> sequenceDiagram { group { FontStyle bold LineThickness 3 LineColor blue LineStyle 10 BackGroundColor pink } groupHeader { FontStyle bold FontColor red BackGroundColor palegreen LineColor red LineStyle 10 } } </style> loop loop label A -> B : msg4 end loop @enduml
