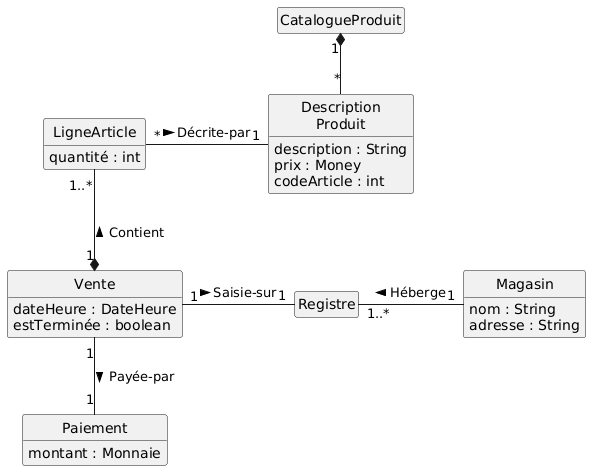

@startuml skinparam style strictuml skinparam defaultFontName Helvetica,Arial,sans-serif skinparam backgroundcolor transparent hide methods hide empty members class "LigneArticle" as SLI { quantité : int } class Vente { dateHeure : DateHeure estTerminée : boolean } class Paiement { montant : Monnaie } class Magasin { nom : String adresse : String } class "Description\nProduit" as PD { description : String prix : Money codeArticle : int } class "CatalogueProduit" as PC Vente "1" *-up- "1..*" SLI : Contient > Magasin "1" -left- "1..*" Registre : Héberge > Vente "1" -right- "1" Registre : Saisie-sur > Vente "1" -down- "1" Paiement : Payée-par > PC "1" *-- "*" PD SLI "*" - "1" PD : Décrite-par > @enduml
