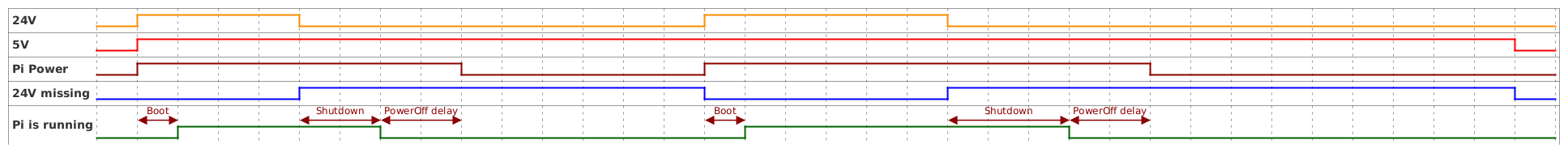

@startuml <style> timingDiagram { .red { LineColor red } .yellow { LineColor darkorange } .darkred { LineColor darkred } .blue { LineColor blue } } </style> hide time-axis binary "24V" as V24 <<yellow>> binary "5V" as V5 <<red>> binary "Pi Power" as PiPower <<darkred>> binary "24V missing" as Missing24 <<blue>> binary "Pi is running" as Running @0 V24 is low V5 is low @100 V24 is high V5 is high PiPower is high @200 Running is high @500 V24 is low V5 is high Missing24 is high @700 Running is low @900 PiPower is low @1500 V24 is high PiPower is high Missing24 is low @1600 Running is high @2100 V24 is low Missing24 is high @2400 Running is low @2600 PiPower is low @3500 V5 is low Missing24 is low @Running @100 <-> @200 : Boot @500 <-> @700 : Shutdown @700 <-> @900 : PowerOff delay @1500 <-> @1600 : Boot @2100 <-> @2400 : Shutdown @2400 <-> @2600 : PowerOff delay @enduml Submit amiga aws-orange black-knight bluegray blueprint cerulean-outline cerulean crt-amber crt-green cyborg-outline cyborg hacker lightgray mars materia-outline materia metal mimeograph minty plain reddress-darkblue reddress-darkgreen reddress-darkorange reddress-darkred reddress-lightblue reddress-lightgreen reddress-lightorange reddress-lightred sandstone silver sketchy-outline sketchy spacelab spacelab-white superhero-outline superhero toy united vibrant       🎉 Discover the future PlantUML Web Editor! 🚀  PNG  SVG  ASCII Art
