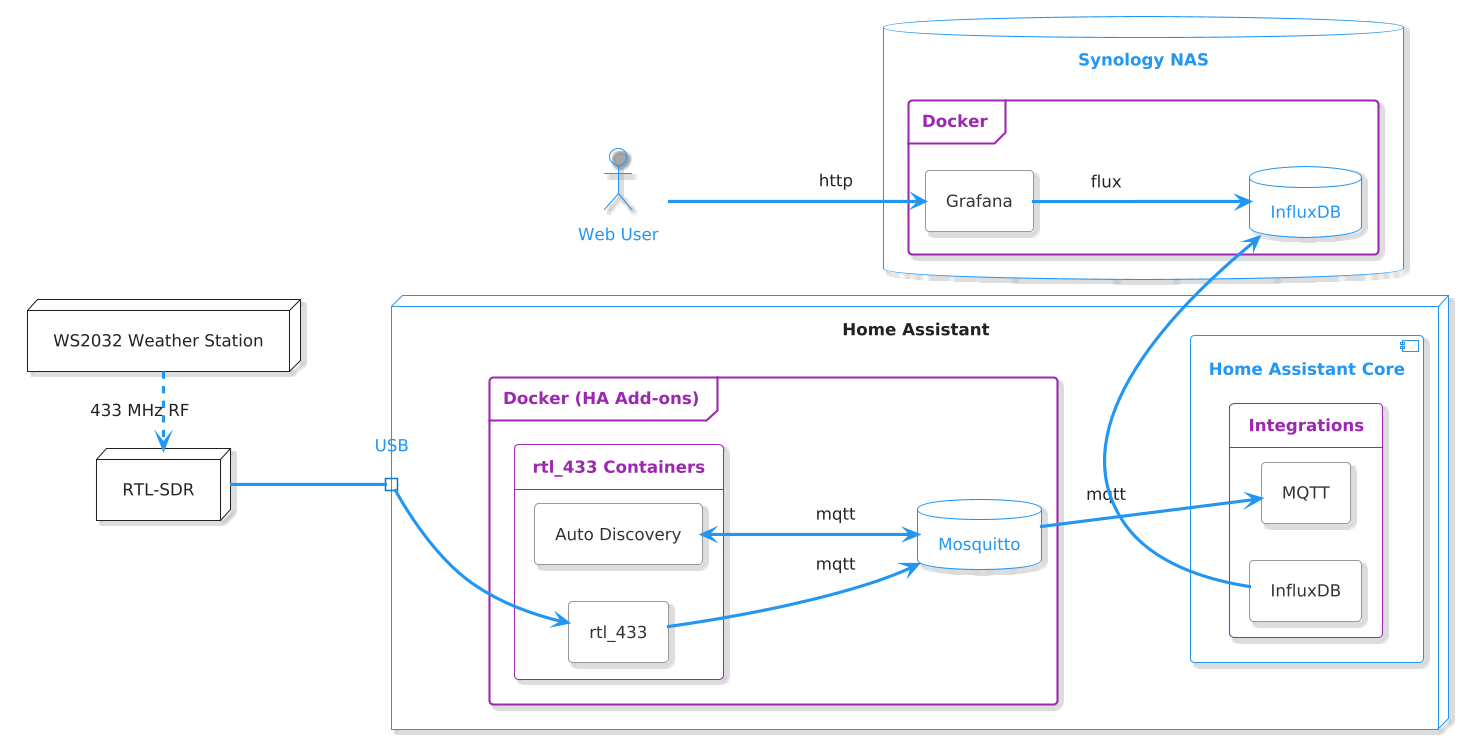

@startuml !theme materia-outline skinparam backgroundColor white skinparam defaultFontName Futura skinparam defaultFontSize 16 left to right direction node "WS2032 Weather Station" actor "Web User" database "Synology NAS" { frame Docker { agent Grafana database InfluxDB Grafana --> InfluxDB : flux } } node "RTL-SDR" node "Home Assistant" { portin USB frame "Docker (HA Add-ons)" { card "rtl_433 Containers" { agent rtl_433 agent "Auto Discovery" as rtl_433_ad } database Mosquitto rtl_433_ad <--> Mosquitto : mqtt rtl_433 -> Mosquitto : mqtt } component "Home Assistant Core" { card Integrations { agent InfluxDB as ha_influxdb agent MQTT as ha_mqtt } } Mosquitto --> ha_mqtt : mqtt USB --> rtl_433 } "RTL-SDR" -- USB "WS2032 Weather Station" .> "RTL-SDR" : "433 MHz RF" ha_influxdb -> InfluxDB "Web User" --> Grafana : http @enduml Submit amiga aws-orange black-knight bluegray blueprint cerulean-outline cerulean crt-amber crt-green cyborg-outline cyborg hacker lightgray mars materia-outline materia metal mimeograph minty plain reddress-darkblue reddress-darkgreen reddress-darkorange reddress-darkred reddress-lightblue reddress-lightgreen reddress-lightorange reddress-lightred sandstone silver sketchy-outline sketchy spacelab spacelab-white superhero-outline superhero toy united vibrant       🎉 Discover the future PlantUML Web Editor! 🚀  PNG  SVG  ASCII Art
