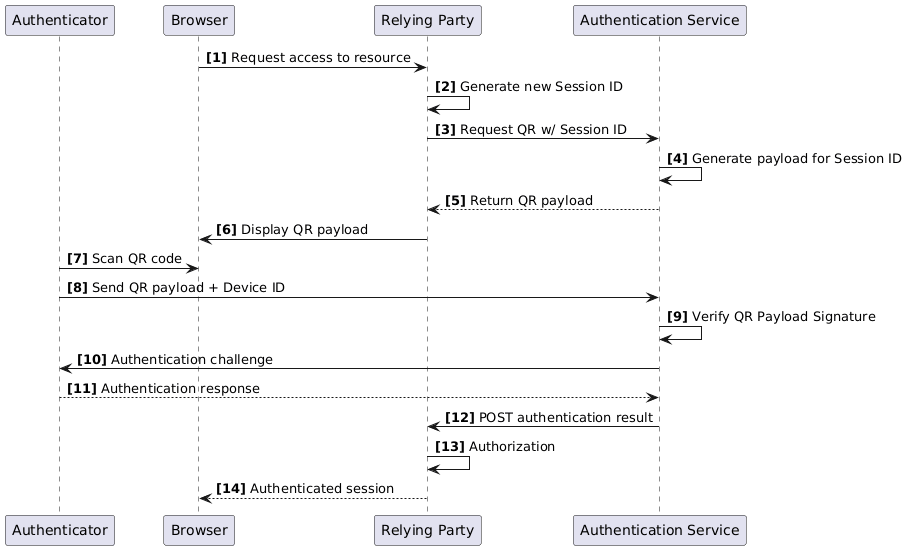

@startuml autonumber "<b>[0]" participant "Authenticator" as authenticator participant "Browser" as browser participant "Relying Party" as rp participant "Authentication Service" as service browser -> rp: Request access to resource rp -> rp: Generate new Session ID rp -> service: Request QR w/ Session ID service -> service: Generate payload for Session ID service --> rp: Return QR payload rp -> browser: Display QR payload authenticator -> browser: Scan QR code authenticator -> service: Send QR payload + Device ID service -> service: Verify QR Payload Signature service -> authenticator: Authentication challenge authenticator --> service: Authentication response service -> rp: POST authentication result rp -> rp: Authorization rp --> browser: Authenticated session @enduml
