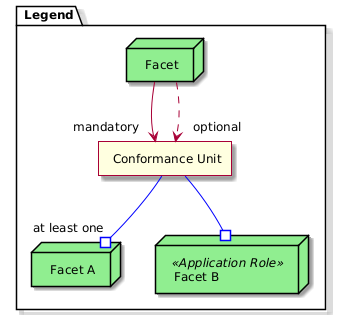

@startuml top to bottom direction skin rose skinparam linetype ortho skinparam linetype polyline skinparam componentStyle rectangle !$Facet = "#lightgreen" !$Server = "<<Server>>" !$PubSub = "<<Publisher>> <<Subscriber>>" !$CU = "#lightyellow" !$CUMandatory = "-->" !$CUOptional = "-.>" !$CUAtLeastOne = '-[#blue]-#' !$SmallFont = "<size:12>" skinparam node { StereotypeFontSize<<Application Role>> 12 } package "$SmallFont Legend" as Legend { [$SmallFont Conformance Unit] as CU $CU node "$SmallFont Facet" as Facet $Facet Facet $CUMandatory "$SmallFont mandatory" CU Facet $CUOptional "$SmallFont optional" CU node "$SmallFont Facet A" as FacetA $Facet node "$SmallFont Facet B" as FacetB <<Application Role>> $Facet CU -[hidden]- FacetA CU -[hidden]- FacetB CU $CUAtLeastOne "$SmallFont at least one" FacetA CU $CUAtLeastOne FacetB } @endum @enduml
