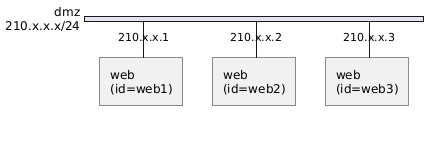

@startuml !$index=1 !unquoted procedure $node($name, $address) %string($name+$index) [$args, address=$address, description=$name\n(id=%string($name+$index))]; !$index = %string(%intval($index) + 1) !endprocedure nwdiag { network dmz { address = "210.x.x.x/24" $node(web, 210.x.x.1) $node(web, 210.x.x.2) $node(web, 210.x.x.3) } } @enduml
