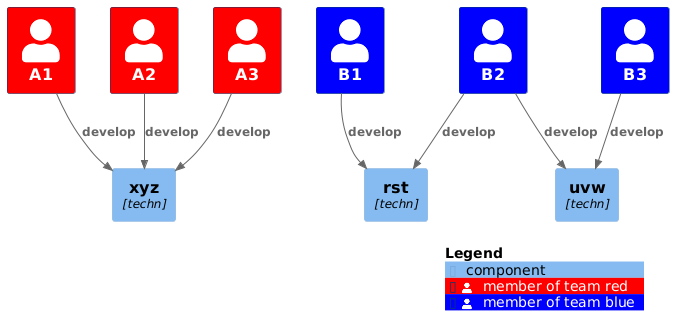

@startuml !include https://raw.githubusercontent.com/kirchsth/C4-PlantUML/extended/C4_Component.puml AddPersonTag("teamred", $bgColor="#red", $legendText ="member of team red") AddPersonTag("teamblue", $bgColor="#blue", $legendText ="member of team blue") !$data={"partlen": "2", "game": "GamePlantuml", "participants": [ {"name": "XYZ" ,"as": "xyz", "team": "A", "persons": ["A1", "A2", "A3"] }, {"name": "RST" ,"as": "rst", "team": "B", "persons": ["B1", "B2" ]}, {"name": "UVW" ,"as": "uvw", "team": "B", "persons": ["B2", "B3" ]}], "color": {"A": "red", "B": "blue"} } !foreach $part in $data.participants Component($part.name, $part.as, "techn") !foreach $member in $part.persons !$teamTag = "team"+$data.color[$part.team] Person($member, $member, $tags = $teamTag) Rel($member, $part.name, "develop") !endfor !endfor SHOW_LEGEND() @enduml Submit amiga aws-orange black-knight bluegray blueprint cerulean-outline cerulean crt-amber crt-green cyborg-outline cyborg hacker lightgray mars materia-outline materia metal mimeograph minty plain reddress-darkblue reddress-darkgreen reddress-darkorange reddress-darkred reddress-lightblue reddress-lightgreen reddress-lightorange reddress-lightred sandstone silver sketchy-outline sketchy spacelab spacelab-white superhero-outline superhero toy united vibrant       🎉 Discover the future PlantUML Web Editor! 🚀  PNG  SVG  ASCII Art
