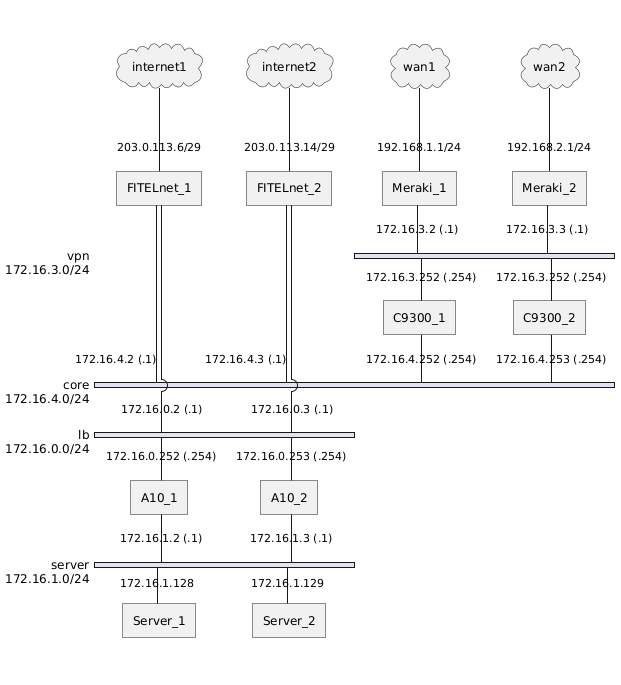

@startuml
nwdiag {
  internet1 [shape=cloud];
  internet2 [shape=cloud];
  internet1 -- FITELnet_1;
  internet2 -- FITELnet_2;
  FITELnet_1 [address = "203.0.113.6/29"];
  FITELnet_2 [address = "203.0.113.14/29"];

wan1 [shape=cloud];
  wan2 [shape=cloud];
  wan1 -- Meraki_1
  wan2 -- Meraki_2
  Meraki_1 [address = "192.168.1.1/24"];
  Meraki_2 [address = "192.168.2.1/24"];

network vpn {
      address = "172.16.3.0/24";

Meraki_1 [address = "172.16.3.2 (.1)"];
      Meraki_2 [address = "172.16.3.3 (.1)"];
      C9300_1 [address = "172.16.3.252 (.254)"];
      C9300_2 [address = "172.16.3.252 (.254)"];
  }
  network core {
      address = "172.16.4.0/24";

FITELnet_1 [address = "172.16.4.2 (.1)"];
      FITELnet_2 [address = "172.16.4.3 (.1)"];
      C9300_1 [address = "172.16.4.252 (.254)"];
      C9300_2 [address = "172.16.4.253 (.254)"];
  }

network lb {
      address = "172.16.0.0/24";

FITELnet_1 [address = "172.16.0.2 (.1)"];
      FITELnet_2 [address = "172.16.0.3 (.1)"];
      A10_1 [address = "172.16.0.252 (.254)"];
      A10_2 [address = "172.16.0.253 (.254)"];
  }
  network server {
      address = "172.16.1.0/24";

A10_1 [address = "172.16.1.2 (.1)"];
      A10_2 [address = "172.16.1.3 (.1)"];
      Server_1 [address = "172.16.1.128"];
      Server_2 [address = "172.16.1.129"];
  }

}
@enduml
