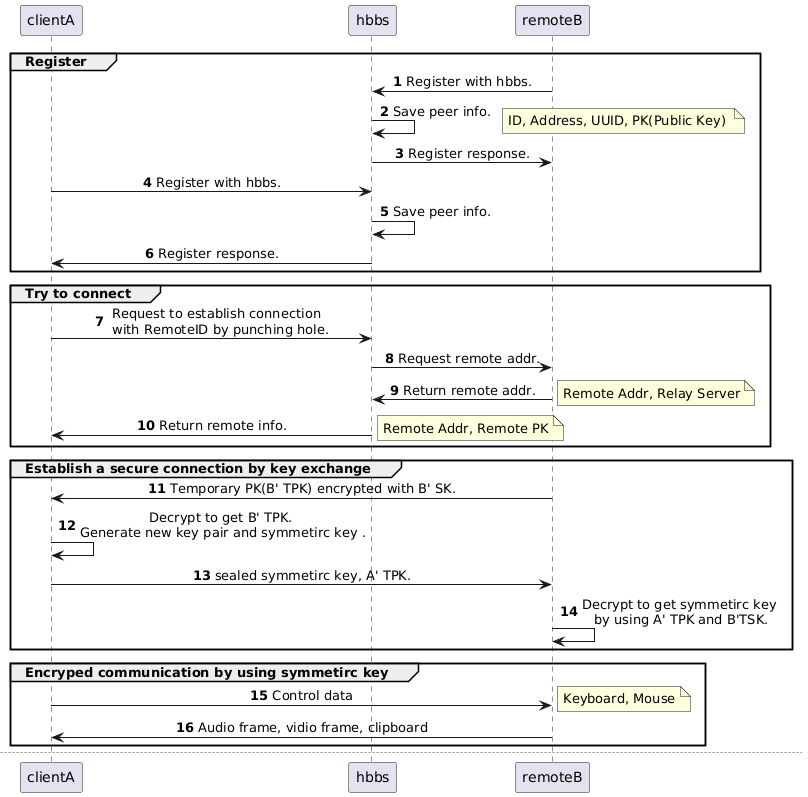

@startuml
participant clientA order 10
participant hbbs order 30
participant remoteB order 30

autonumber
skinparam sequenceMessageAlign center

group Register
    remoteB -> hbbs: Register with hbbs.
    hbbs -> hbbs: Save peer info.
    note right
    ID, Address, UUID, PK(Public Key)
    end note

hbbs -> remoteB: Register response.
    clientA -> hbbs: Register with hbbs.
    hbbs -> hbbs: Save peer info.
    hbbs -> clientA: Register response.
end

group Try to connect
    clientA -> hbbs: Request to establish connection \n with RemoteID by punching hole.
    hbbs -> remoteB: Request remote addr.
    remoteB -> hbbs: Return remote addr.
    note right
    Remote Addr, Relay Server
    end note

hbbs -> clientA: Return remote info.
    note right
    Remote Addr, Remote PK
    end note
end

group Establish a secure connection by key exchange
    remoteB -> clientA: Temporary PK(B' TPK) encrypted with B' SK.
    clientA -> clientA: Decrypt to get B' TPK. \nGenerate new key pair and symmetirc key .
    clientA -> remoteB: sealed symmetirc key, A' TPK.
    remoteB -> remoteB: Decrypt to get symmetirc key \nby using A' TPK and B'TSK.
end

group Encryped communication by using symmetirc key
    clientA -> remoteB: Control data
    note right
    Keyboard, Mouse
    end note
    remoteB -> clientA: Audio frame, vidio frame, clipboard
end

newpage
@enduml
