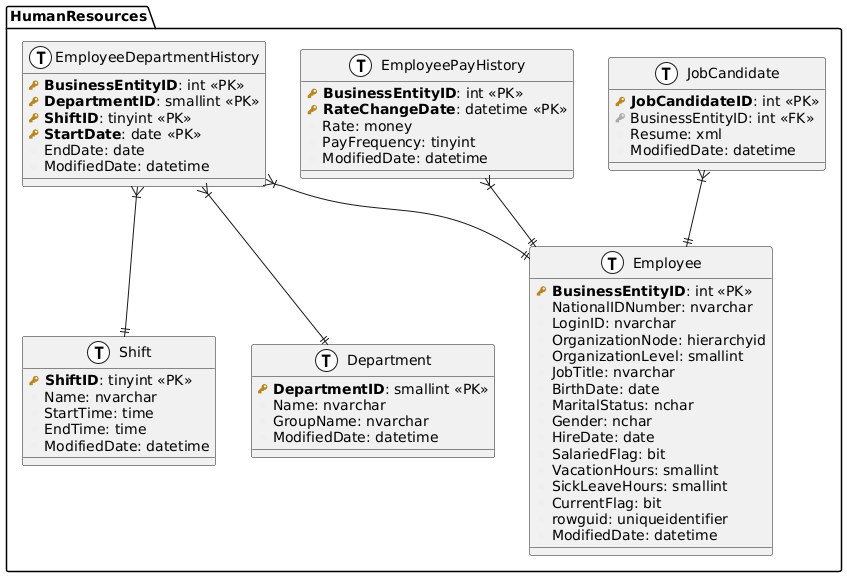

@startuml !define primary_key(x) <b><color:#b8861b><&key></color> x</b> !define foreign_key(x) <color:#aaaaaa><&key></color> x !define column(x) <color:#efefef><&media-record></color> x !define table(x) entity x << (T, white) >> table( HumanResources.Shift ) { primary_key( ShiftID ): tinyint <<PK>> column( Name ): nvarchar column( StartTime ): time column( EndTime ): time column( ModifiedDate ): datetime } table( HumanResources.Department ) { primary_key( DepartmentID ): smallint <<PK>> column( Name ): nvarchar column( GroupName ): nvarchar column( ModifiedDate ): datetime } table( HumanResources.Employee ) { primary_key( BusinessEntityID ): int <<PK>> column( NationalIDNumber ): nvarchar column( LoginID ): nvarchar column( OrganizationNode ): hierarchyid column( OrganizationLevel ): smallint column( JobTitle ): nvarchar column( BirthDate ): date column( MaritalStatus ): nchar column( Gender ): nchar column( HireDate ): date column( SalariedFlag ): bit column( VacationHours ): smallint column( SickLeaveHours ): smallint column( CurrentFlag ): bit column( rowguid ): uniqueidentifier column( ModifiedDate ): datetime } table( HumanResources.EmployeeDepartmentHistory ) { primary_key( BusinessEntityID ): int <<PK>> primary_key( DepartmentID ): smallint <<PK>> primary_key( ShiftID ): tinyint <<PK>> primary_key( StartDate ): date <<PK>> column( EndDate ): date column( ModifiedDate ): datetime } table( HumanResources.EmployeePayHistory ) { primary_key( BusinessEntityID ): int <<PK>> primary_key( RateChangeDate ): datetime <<PK>> column( Rate ): money column( PayFrequency ): tinyint column( ModifiedDate ): datetime } table( HumanResources.JobCandidate ) { primary_key( JobCandidateID ): int <<PK>> foreign_key( BusinessEntityID ): int <<FK>> column( Resume ): xml column( ModifiedDate ): datetime } ' *** Define Table Relationships HumanResources.EmployeeDepartmentHistory }|--|| HumanResources.Department HumanResources.EmployeeDepartmentHistory }|--|| HumanResources.Employee HumanResources.EmployeeDepartmentHistory }|--|| HumanResources.Shift HumanResources.EmployeePayHistory }|--|| HumanResources.Employee HumanResources.JobCandidate }|--|| HumanResources.Employee @enduml Submit amiga aws-orange black-knight bluegray blueprint cerulean-outline cerulean crt-amber crt-green cyborg-outline cyborg hacker lightgray mars materia-outline materia metal mimeograph minty plain reddress-darkblue reddress-darkgreen reddress-darkorange reddress-darkred reddress-lightblue reddress-lightgreen reddress-lightorange reddress-lightred sandstone silver sketchy-outline sketchy spacelab spacelab-white superhero-outline superhero toy united vibrant       🎉 Discover the future PlantUML Web Editor! 🚀  PNG  SVG  ASCII Art
