@startuml
!theme C4_united from https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/themes
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

'LAYOUT_WITH_LEGEND()

skinparam {
    linetype ortho
    ArrowThickness 3
    roundcorner 20
    maxMessageSize 300
    wrapWidth 300
}

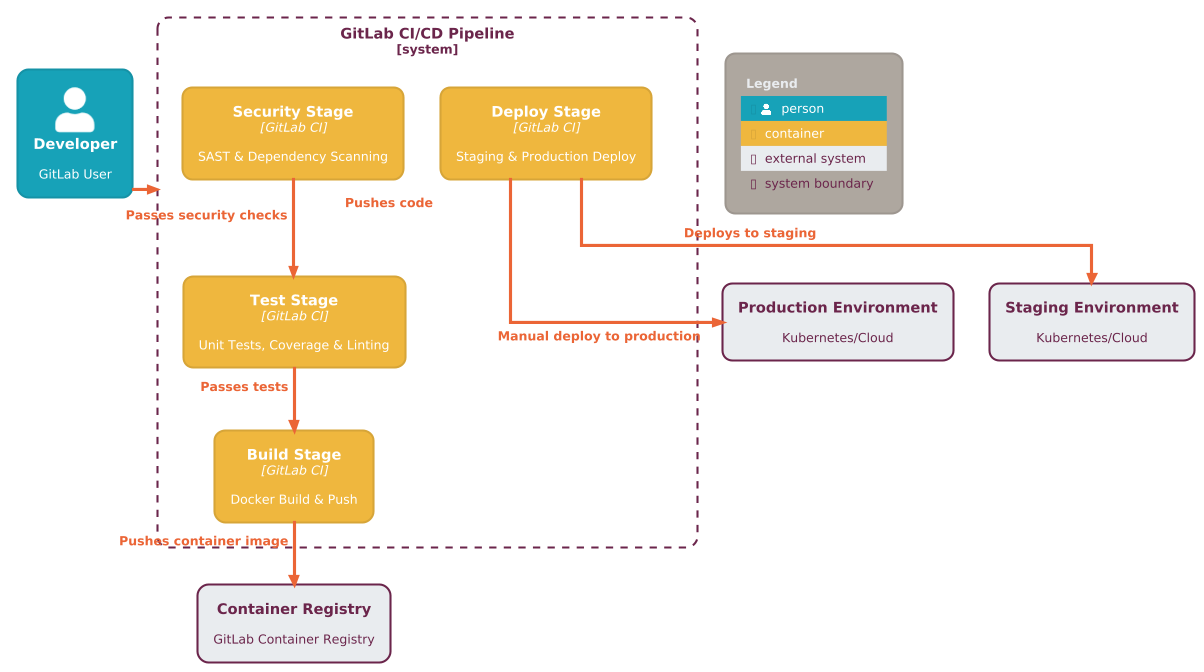

Person(developer, "Developer", "GitLab User")
System_Boundary(pipeline, "GitLab CI/CD Pipeline") {
    Container(security, "Security Stage", "GitLab CI", "SAST & Dependency Scanning")
    Container(test, "Test Stage", "GitLab CI", "Unit Tests, Coverage & Linting")
    Container(build, "Build Stage", "GitLab CI", "Docker Build & Push")
    Container(deploy, "Deploy Stage", "GitLab CI", "Staging & Production Deploy")
}

System_Ext(registry, "Container Registry", "GitLab Container Registry")
System_Ext(production, "Production Environment", "Kubernetes/Cloud")
System_Ext(staging, "Staging Environment", "Kubernetes/Cloud")

Rel_Right(developer, pipeline, "Pushes code")
Rel(security, test, "Passes security checks")
Rel(test, build, "Passes tests")
Rel(build, registry, "Pushes container image")
Rel(deploy, staging, "Deploys to staging")
Rel(deploy, production, "Manual deploy to production")

SHOW_FLOATING_LEGEND()
@enduml
