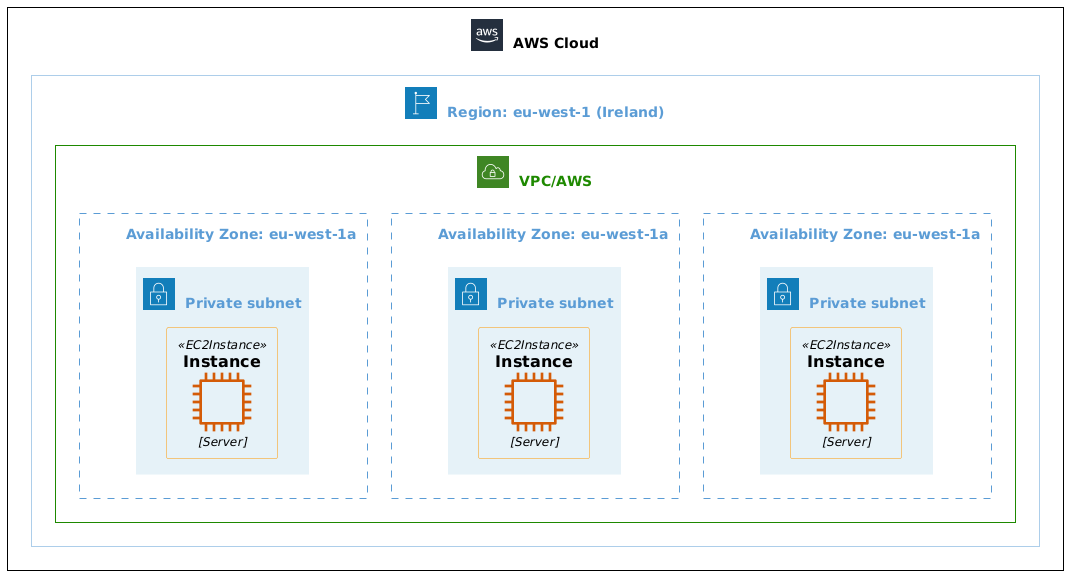

@startuml
!define AWSPuml https://raw.githubusercontent.com/awslabs/aws-icons-for-plantuml/v14.0/dist

!include AWSPuml/AWSCommon.puml

!include AWSPuml/Groups/AWSCloud.puml
!include AWSPuml/Groups/VPC.puml
!include AWSPuml/Groups/AvailabilityZone.puml
!include AWSPuml/Groups/Region.puml
!include AWSPuml/Groups/PrivateSubnet.puml

!include AWSPuml/Compute/EC2.puml
!include AWSPuml/Compute/EC2Instance.puml

AWSCloudGroup(cloud) {
  RegionGroup(region, "Region: eu-west-1 (Ireland)") {
    VPCGroup(a, "VPC/AWS") {
      AvailabilityZoneGroup(vpc/aws/eu-west-1a, "\tAvailability Zone: eu-west-1a\t") {
        PrivateSubnetGroup(p1, "Private subnet") {
        EC2Instance(i1, "Instance", "Server") #Transparent
        }
      }

AvailabilityZoneGroup(vpc/aws/eu-west-1b, "\tAvailability Zone: eu-west-1a\t") {
        PrivateSubnetGroup(p2, "Private subnet") {
        EC2Instance(i2, "Instance", "Server") #Transparent
        }
      }

AvailabilityZoneGroup(vpc/aws/eu-west-1c, "\tAvailability Zone: eu-west-1a\t") {
        PrivateSubnetGroup(p3, "Private subnet") {
        EC2Instance(i3, "Instance", "Server") #Transparent
        }
      }
    }
  }
}
@enduml
