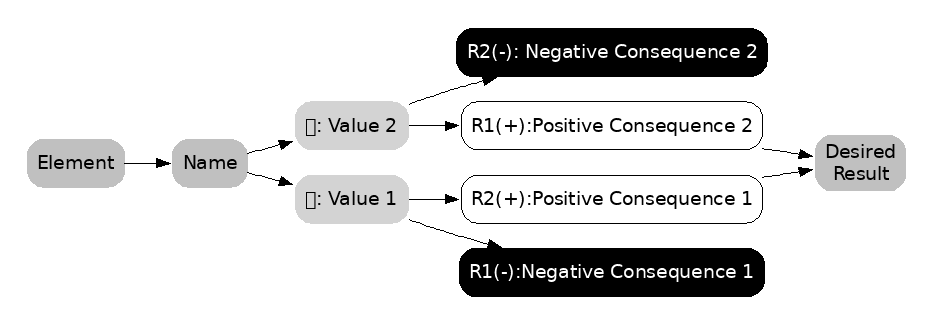

@startuml
digraph HPG_contradiction {
      rankdir = LR;

subgraph cluster_conflict {
        color=white
      size="12,9";
      node [shape = Mrecord fontname="Roboto Slab Regular"];
      E [label = "Element" style=filled color = grey] # Enter the name of the element in place of "Element"
      N [label = "Name" style=filled color = grey] # Enter the name of the element in place of "Name"
      Var1 [label = "⮝: Value 1" style=filled color = lightgray] # Enter the name of the element in place of "Value 1"
      Var2 [label = "⮟: Value 2" style=filled color = lightgray] # Enter the name of the element in place of "Value 2"
      R1minus [label = "R1(-):Negative Consequence 1" style=filled fontcolor=white color=black] # Enter the name of the element in place of "Negative Consequence 1"
      R2plus [label = "R2(+):Positive Consequence 1" ] # Enter the name of the element in place of "Positive Consequence 1"
      R1plus [label = "R1(+):Positive Consequence 2" ] # Enter the name of the element in place of "Positive Consequence 2"
      R2minus [label = "R2(-): Negative Consequence 2" style=filled fontcolor=white color=black] # Enter the name of the element in place of "Negative Consequence 2"
      Desired_Result [label = "Desired\nResult" style=filled color = grey]
      E -> N
      N -> Var1
      N -> Var2
      Var1 -> R1minus
      Var1 -> R2plus
      Var2 -> R1plus
      Var2 -> R2minus
      R2plus -> Desired_Result
      R1plus -> Desired_Result
   }
    }
@enduml
