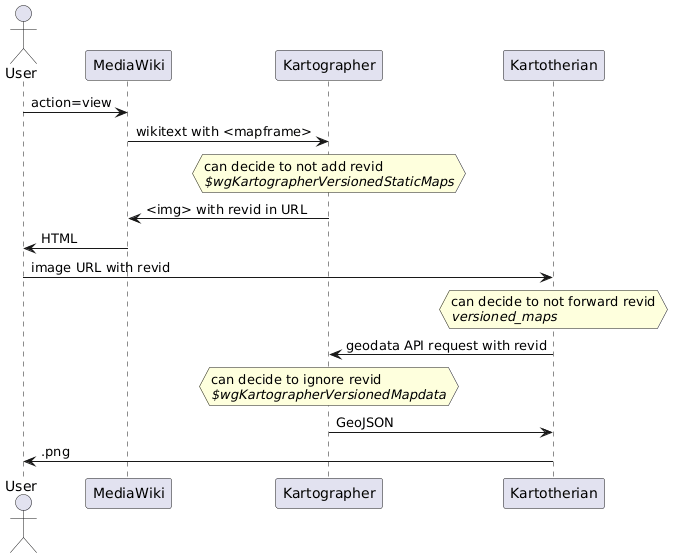

@startuml actor User User -> MediaWiki: action=view MediaWiki -> Kartographer: wikitext with <mapframe> hnote over Kartographer: can decide to not add revid\n//$wgKartographerVersionedStaticMaps// Kartographer -> MediaWiki: <img> with revid in URL MediaWiki -> User: HTML User -> Kartotherian: image URL with revid hnote over Kartotherian: can decide to not forward revid\n//versioned_maps// Kartotherian -> Kartographer: geodata API request with revid hnote over Kartographer: can decide to ignore revid\n//$wgKartographerVersionedMapdata// Kartographer -> Kartotherian: GeoJSON Kartotherian -> User : .png @enduml
